Cut-Off Blades

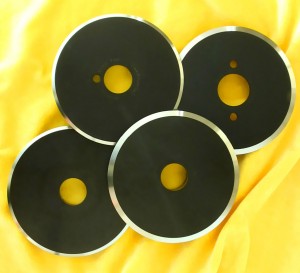

cut-off-bladeContinental manufactures precision ground cut-off blades to fit a wide range of pipe and tube cutting and grooving requirements. Special bevels and blades can be made on request.

Top Performance

All blades are made of high impact tool steel for top performance and long life.

Extended Blade Life

Continental blades are made to be sharpened for extended blade life. Convenient sharpening services direct from the factory are available. Or, eliminate this cost with a Continental Cut-off Blade Grinding machine.

Industry Standard

Blades are available for machinery from Landis, Modern and other manufacturers, in addition to Continental. All Continental blades are designed to fit industry standard machines.

In Stock

Many blade models are in stock for immediate delivery.

Special Blades

Need a special blade? Send us a drawing and we will quote it for you.

We can provide blades for Landis, Amada, Rabbit and other tube cut-off machines

Replacement Parts and Blades

Continental maintains an extensive cut-off blade and replacement part inventory for its machines and accessories. Most blade and replacement parts are in stock for immediate delivery.

High Speed Pipe and Tube Cut-off Blades
MODEL
NO.
BORE
(IN.)
THICKNESS
(IN.)
DIA.
(IN.)
BEVEL
(SEE DETAIL)
REMARKS
7170 1-7/16 1/8 7 STD. For use on Continental Model 2, 3 and 6 cut-off machines with 1-7/16″ diameter cutter shaft collar. No pinholes or keyways.
7171 1-7/16 1/8 7 TUBE
7172 1-7/16 1/8 7 LONG
7174 1-7/16 1/8 7 10°
7370 1-7/16 3/16 7 STD.
7372 1-7/16 3/16 7 LONG
7373 1-7/16 3/16 7 EXTRA LONG
7120 1-1/2 1/8 7 STD. For use on Continental Model 2, 3 and 6 cut-off machines with 1-1/2″ diameter cutter shaft collar. Also Landis and other rotary cutoff
machines having a 13/32″ diameter pin hole on a 1-1/8″ radius.
7121 1-1/2 1/8 7 TUBE
7122 1-1/2 1/8 7 LONG
7320 1-1/2 3/16 7 STD.
7322 1-1/2 3/16 7 LONG
8320 1-1/2 3/16 8 STD.
7140 1-3/4 1/8 7 STD. For use on Continental Model 12 cut-off machines with 1-3/4″ diameter cutter
shaft collar and other rotary cut-off machines having two 13/32″ diameter pin holes, one on 1-13/32″ radius and one on 1-29/64″ radius.
7340 1-3/4 3/16 7 STD.
7342 1-3/4 3/16 7 LONG
8140 1-3/4 1/8 8 STD.
8340 1-3/4 3/16 8 STD.
NOTE: BLADES MARKED (*) ARE FOR USE ON TELEDYNE LANDIS CUT-OFF MACHINES.
STANDARD CUT-OFF BLADE BEVELS
1/8″ STANDARD BEVEL1_8_standard1/8″ BLADE FOR WALL THICK-
NESS UP TO .125″ (1/8″).
3/16″ STANDARD BEVEL3_16_standard3/16″ BLADE FOR WALL THICK-
NESS UP TO .250″ (1/4″).
TUBE BEVELtube1/8″ BLADE FOR WALL THICK-
NESS UP TO .065″.
1/8″ LONG BEVEL1_8_long1/8″ BLADE FOR WALL THICK-
NESS UP TO .313″ (5/16″).
3/16″ LONG BEVEL
3_16_long3/16″ BLADE FOR WALL THICK-
NESS UP TO .500″ (1/2″).
EXTRA LONG BEVEL
xtra_long3/16″ BLADE FOR WALL THICK-
NESS UP TO .625″ (5/8″).
