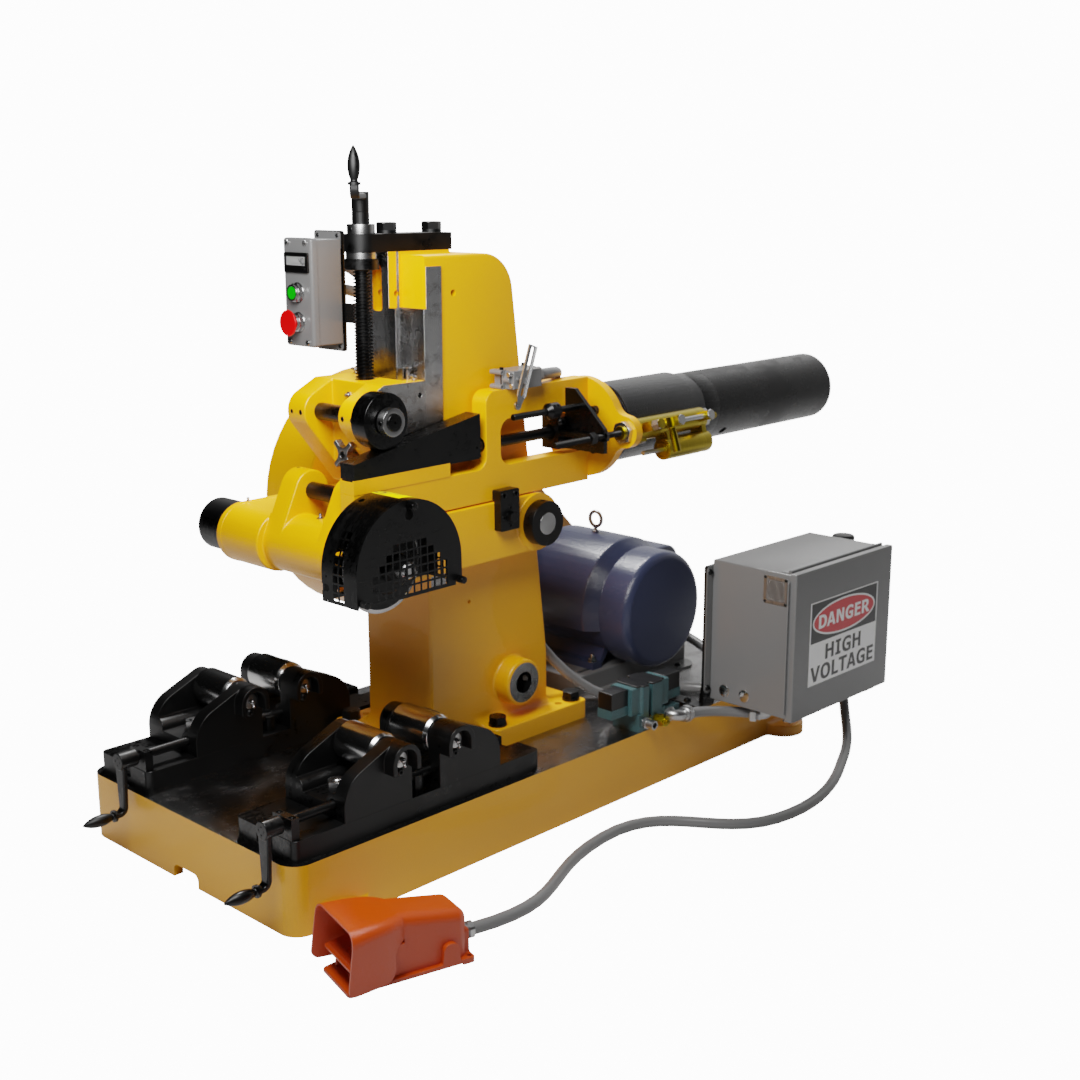

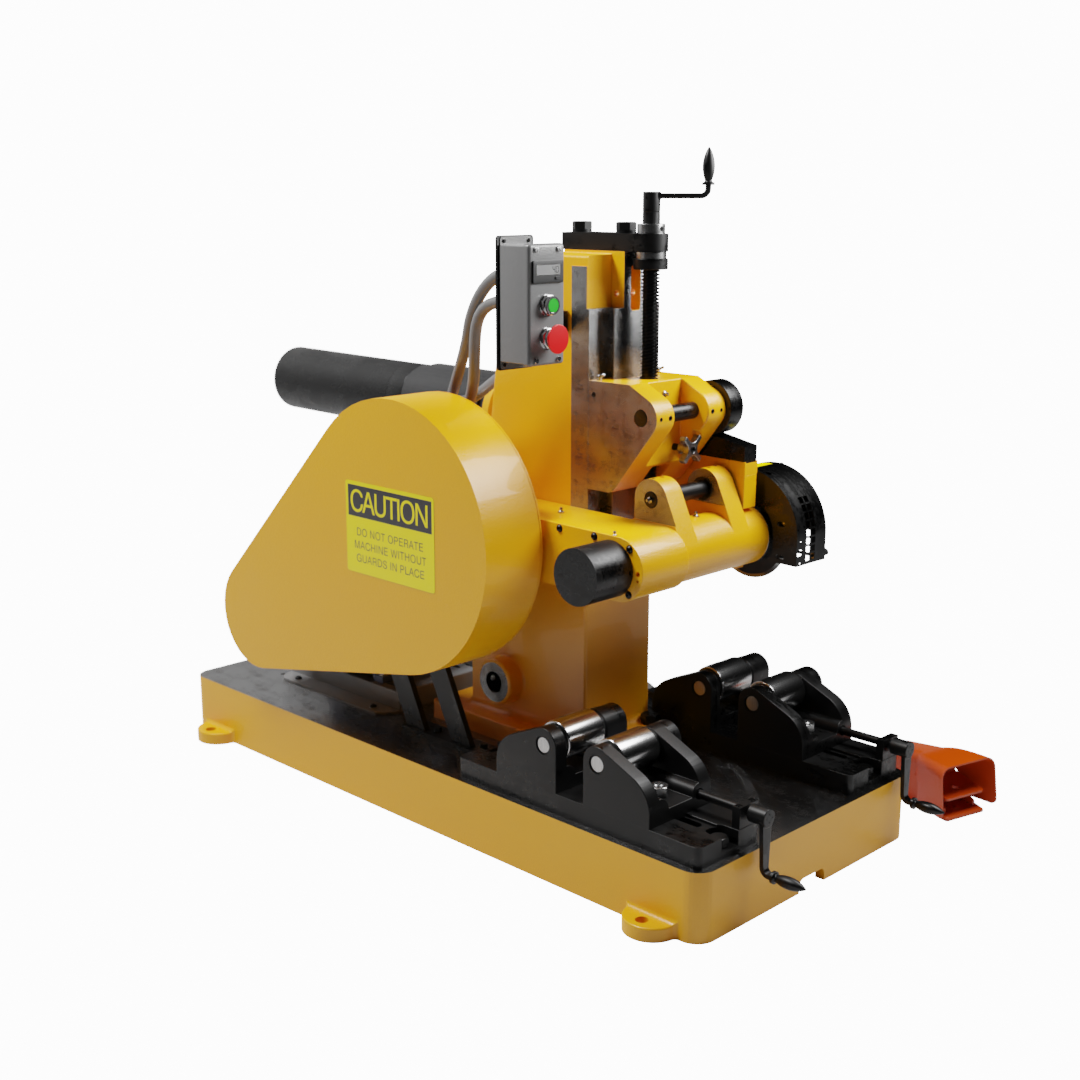

Model 12A Air-Operated Cut-Off Machine

Model 12A Air-Operated Cut-Off Machine

Complete with motor starter, 5HP (220/440 volt, 3 phase, 60 Hz) motor, Model 445 manual length gauge assembly, Model 469 cutter block assembly and standard cut-off blade

  • Best use: Heavy duty for handling large size pipe and tube
  • Simple, fast setup – easy to learn
  • Inexpensive, resharpenable blades
  • Chipless rotary cut is clean, smooth and fast
  • Air power provides fast cutting – up to 5/8” wall thickness

Continental cut-off machines cut pipe and tube quickly and cleanly using the unique rotary cut-off method. This method and our machines have a number of benefits over other processes:

Because the blade only passes through the tube’s wall thickness, not the entire diameter, cuts are much faster than band saws, cold saws, etc. No chips are created and usually no coolant is required, so your parts and the work area stay clean. No chips, No mess, No hassle! The cut is smooth and clean with minimal burrs, so secondary de-burring operations can often be eliminated.

Capacity:

3-1/2” to 12-3/4” OD X 1/2” wall


Typical cut times for mild steel:

6”ODX3/8”wall – 20seconds
10”ODX1/2”wall – 40seconds


Includes:

Manual length gauge
Cutter block assembly
Standard cut-off blade


Optional:

Motor upgrade to 7-1/2HP for wall thickness up to 5/8”


Accessories

Model 423

7-1/2HP motor assembly with 5-belt drive, in place of standard 5HP

Model 469

Extra cutter block assembly, for use as a pipe support

Free sample cutting offer on your material

Let us introduce you to the many advantages of Continental’s rotary cutoff method. Simply send us a short sample of the pipe or tube you typically cut and we’ll cut it on a Continental tube cutting machine and send you the cut pieces so you can see the clean, square, cut Continental machines produce. We’ll also include a detailed report that includes cut times, production rates, tooling costs and more. We’re sure you’ll be impressed!

Request a Sample Cut
