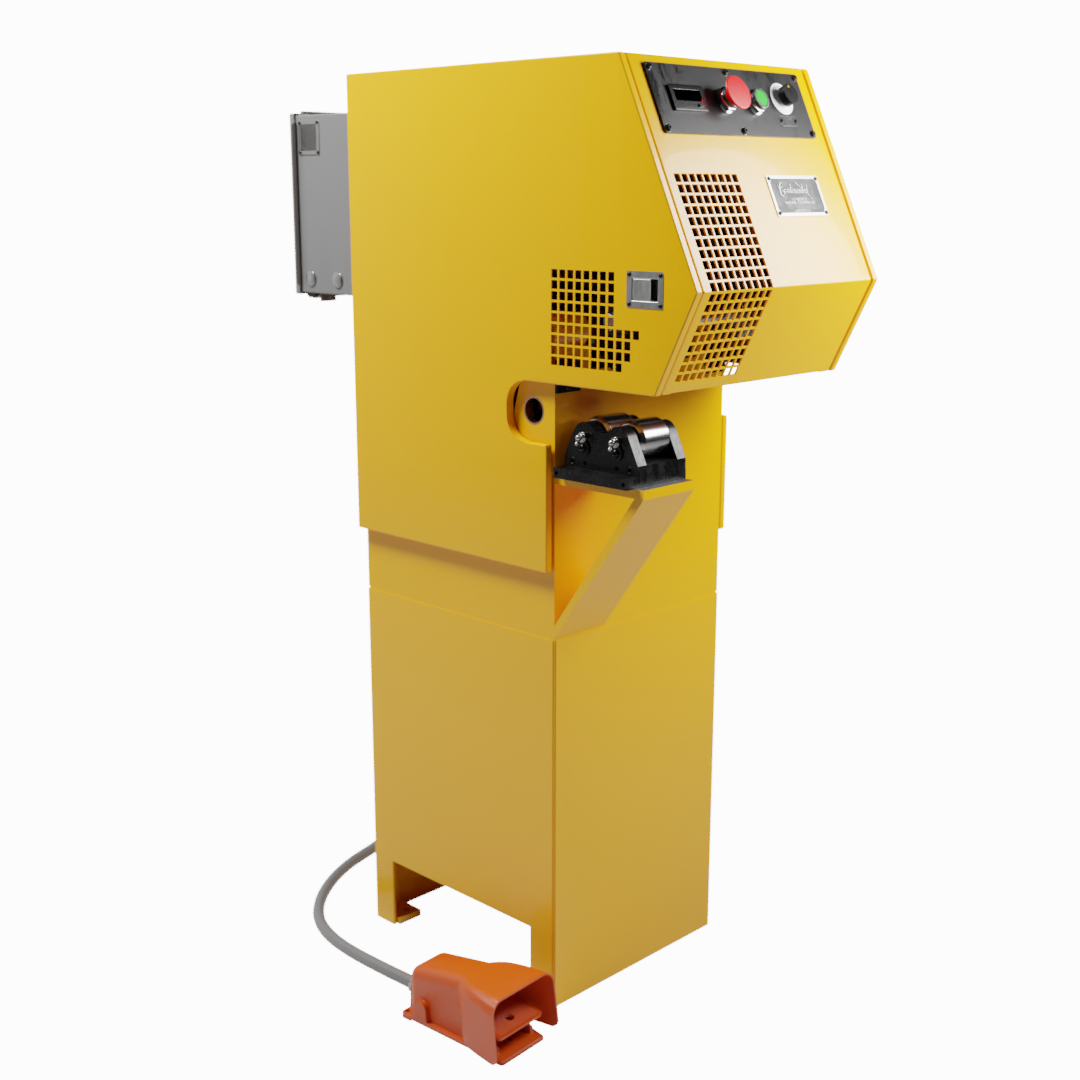

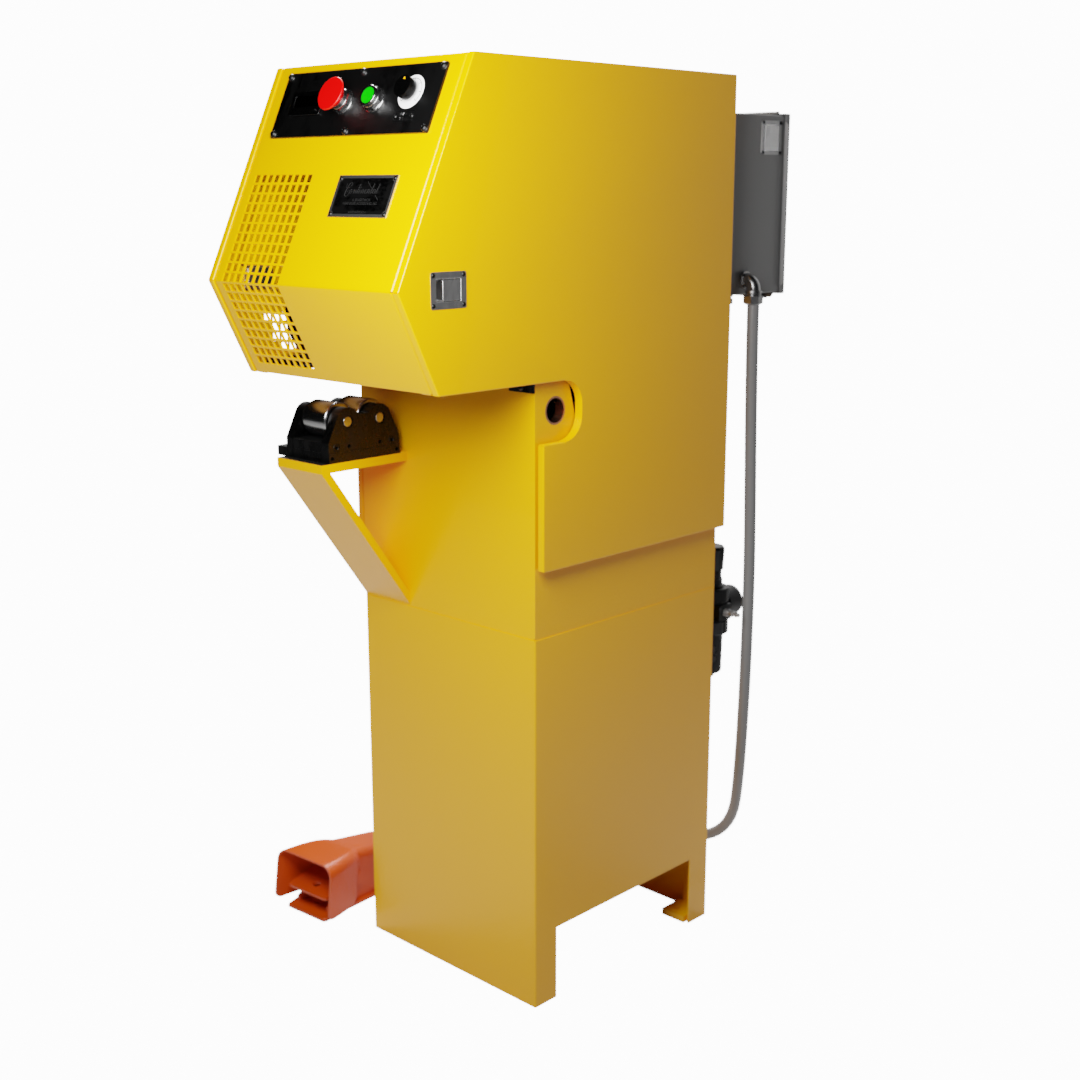

Model 2A Cut-off Machine

Model 2A Cut-off Machine

Complete with motor starter, 1HP (220/440 volt, 3 phase, 60 Hz) motor, Model 442 manual length gauge assembly, choice of one standard cutter block assembly and standard cut-off blade

  • Best use: high production applications or long production run applications
  • Simple, fast setup – easy to learn
  • Inexpensive, resharpenable blades
  • Chipless rotary cut is clean, smooth and fast
  • Air power provides fast cutting – up to 1/4” wall thickness

Continental cut-off machines cut pipe and tube quickly and cleanly using the unique rotary cut-off method. This method and our machines have a number of benefits over other processes:

Because the blade only passes through the tube’s wall thickness, not the entire diameter, cuts are much faster than band saws, cold saws, etc. No chips are created and usually no coolant is required, so your parts and the work area stay clean. No chips, No mess, No hassle! The cut is smooth and clean with minimal burrs, so secondary de-burring operations can often be eliminated.

Capacity:

1/4” to 2” OD X 1/4” wall


Typical cut times for mild steel:

1” OD X 0.065” wall – 1 second
2”ODX1/8”wall – 2seconds


Includes:

Manual length gauge
Cutter block assembly
Standard cut-off blade


Optional:

Tube support tables
Automatic length gauge assembly
Wide range of cutter block assemblies
Automatic feed systems


Accessories

Variable Speed Drive Options

Allows control of blade rotational speed

Model 425

Tube support table for 10’ to 12’ stock lengths

Model 426

Tube support table for 18’ to 20’ stock lengths

Model 428

Automatic length gauge assembly

Model 466

Cutter block assembly for 1” to 2” OD pipe and tube

Model 491

Cutter block assembly for 3/8” to 1” OD pipe and tube

Model 492

Cutter block assembly for 1/4” to 3/8” OD pipe and tube

Free sample cutting offer on your material

Let us introduce you to the many advantages of Continental’s rotary cutoff method. Simply send us a short sample of the pipe or tube you typically cut and we’ll cut it on a Continental tube cutting machine and send you the cut pieces so you can see the clean, square, cut Continental machines produce. We’ll also include a detailed report that includes cut times, production rates, tooling costs and more. We’re sure you’ll be impressed!
