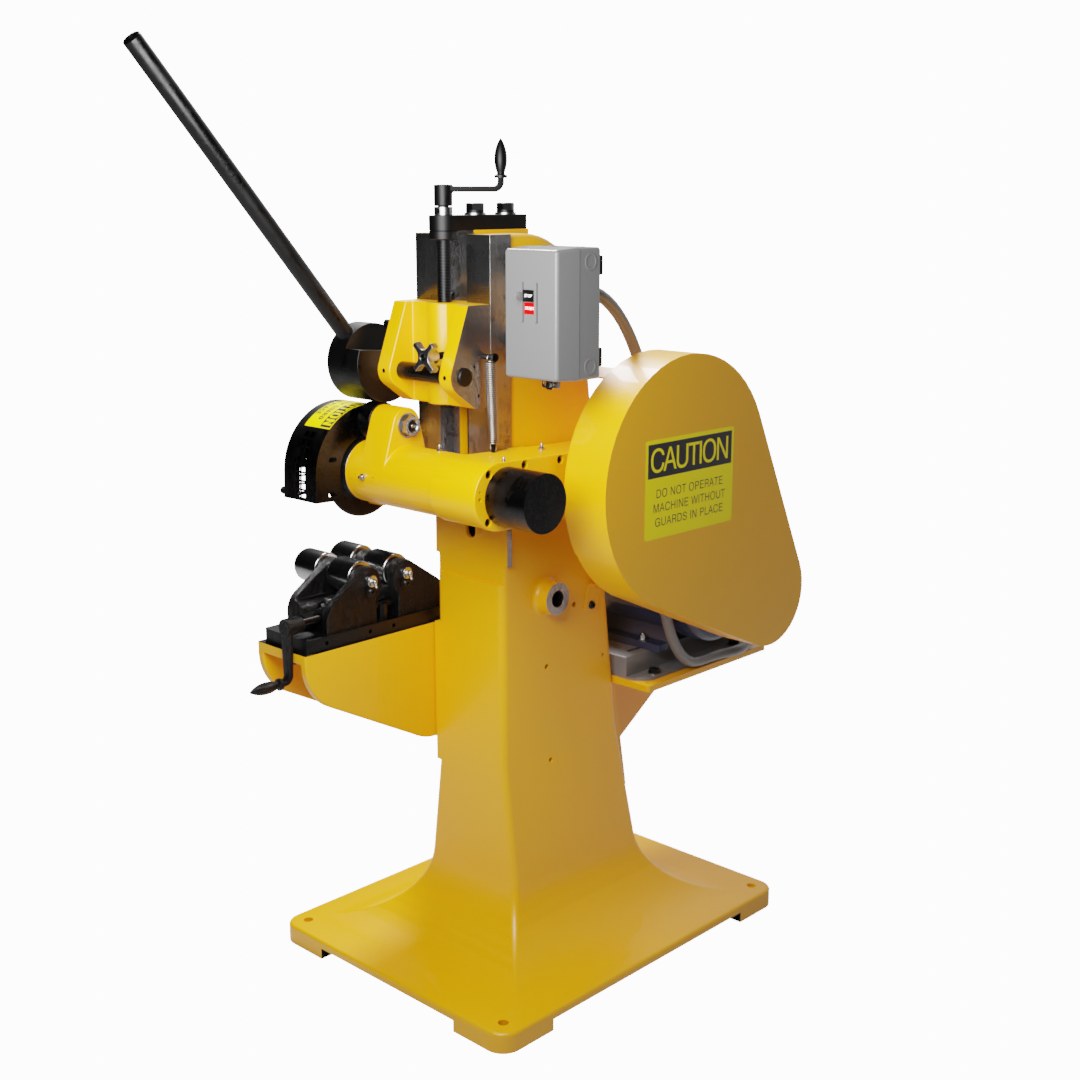

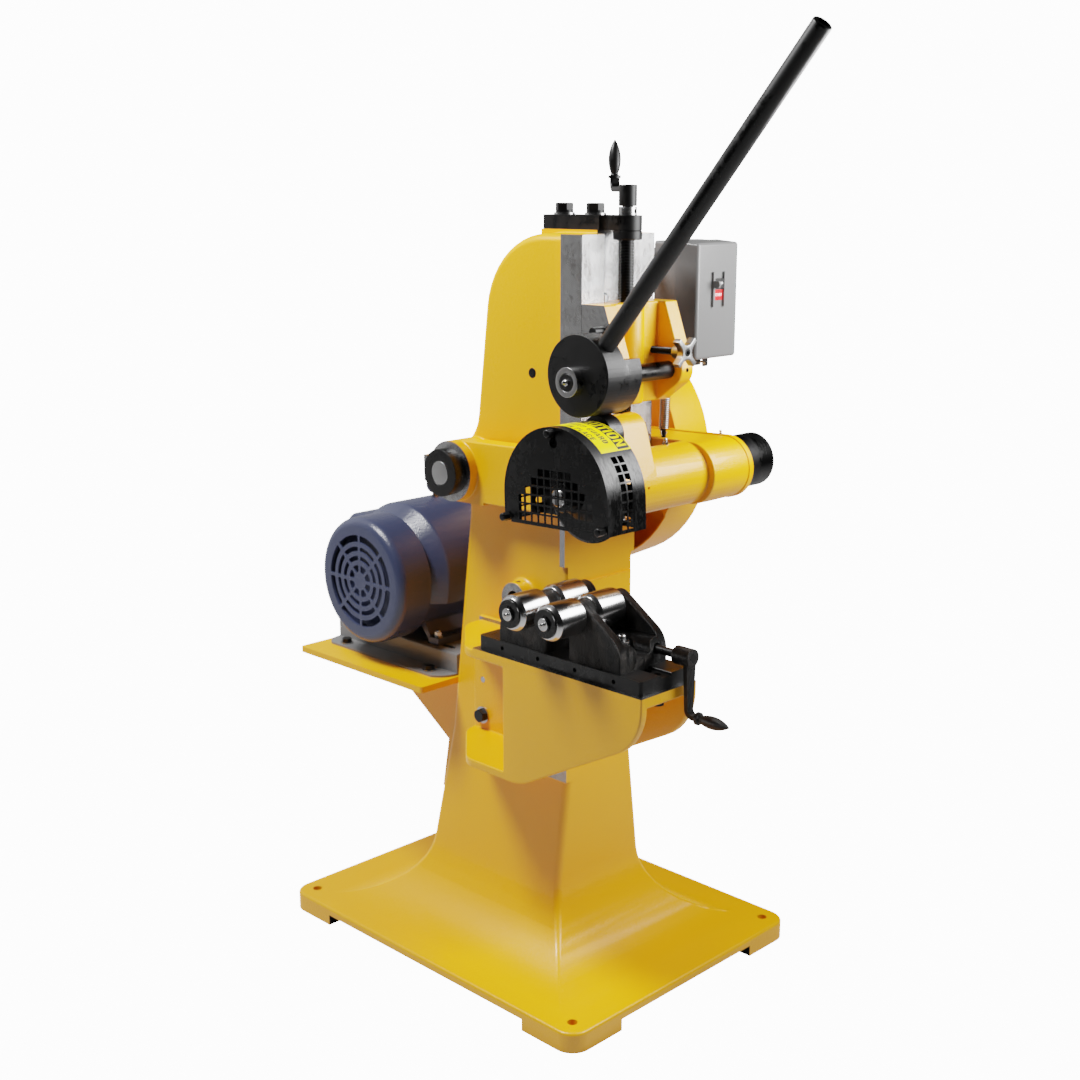

Model 6H Hand-Operated Cut-Off Machine

Model 6H Hand-Operated Cut-Off Machine

Complete with motor starter, 3HP (220/440 volt, 3 phase, 60 Hz) motor, Model 444 manual length gauge assembly, choice of one standard cutter block assembly and standard cut-off blade

  • Best use: short production run applications with frequent tube size changes
  • Super easy to set up and operate

Continental cut-off machines cut pipe and tube quickly and cleanly using the unique rotary cut-off method. This method and our machines have a number of benefits over other processes:

Because the blade only passes through the tube’s wall thickness, not the entire diameter, cuts are much faster than band saws, cold saws, etc. No chips are created and usually no coolant is required, so your parts and the work area stay clean. No chips, No mess, No hassle! The cut is smooth and clean with minimal burrs, so secondary de-burring operations can often be eliminated.

Capacity:

3/8” to 7-1/2” OD X 3/8” wall


Typical cut times for mild steel:

4-1/2” OD X 1/4” wall – 10 seconds
6”ODX3/8”wall – 20seconds


Includes:

Manual length gauge
Cutter block assembly
Standard cut-off blade



Optional:

Automatic length gauge assembly
Wide range of cutter block assemblies
Motor upgrade to 5HP
Tube support system
Special increased capacity package for cutting pipe and tube up to 8-5/8” OD X 1/2” wall
Automatic feed systems


Accessories

Variable Speed Drive Options

Allows control of blade rotational speed with 3 or 5HP motors

Model 422A

5HP motor assembly with 3-belt drive, in place of standard 3HP

Model 465

Cutter block assembly for 3/8” to 1-1/4” OD pipe and tube

Model 468

Cutter block assembly for 3/4” to 7-1/2” OD pipe and tube

Model 448

Automatic length gauge assembly, for use on air-operated machines

Free sample cutting offer on your material

Let us introduce you to the many advantages of Continental’s rotary cutoff method. Simply send us a short sample of the pipe or tube you typically cut and we’ll cut it on a Continental tube cutting machine and send you the cut pieces so you can see the clean, square, cut Continental machines produce. We’ll also include a detailed report that includes cut times, production rates, tooling costs and more. We’re sure you’ll be impressed!

Request a Sample Cut
