Pipe and Tube Cutting Machine Accessories

A wide range of standard accessories is available to complement Continental machines—from in-feed tube support systems and automatic tube feeding systems to cutter blocks for all tube sizes.  In addition, we will design and build special accessories to meet your particular pipe and tube cutting requirements.  These range from special out-feed handling systems to integrating the Continental machine into a work cell.

Following are our standard machine accessories—but if you have special requirements please call us, or fill out our contact form and we’ll get back to you.

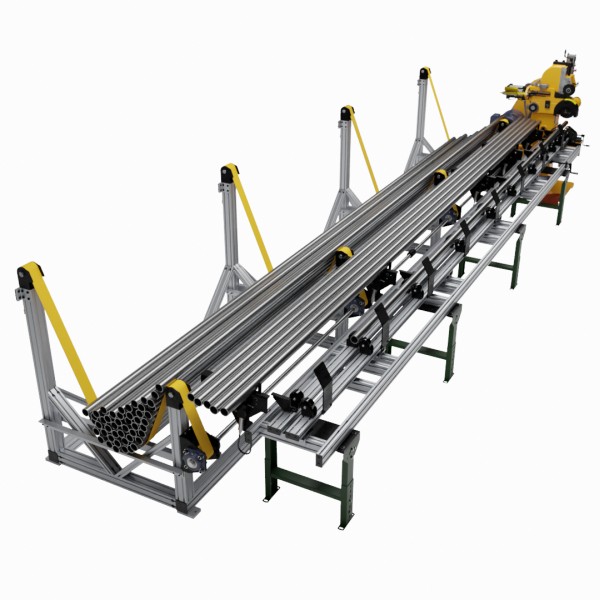

Automatic Tube Feed Systems

Programmable, automatic tube feeders are available for all Continental pipe and tube cut-off machines.  These feeders can be as simple as a “one-stick-at-a-time” feeder to complete systems to go from tube bundle to cut parts.  They can be stand-alone tube feeding/cutting machines or can be integrated into your manufacturing process or cell.

At the simple end, our one-stick-at-a-time programmable tube feeders allow you to manually load one stock length into the feeder.  The unit will then feed and cut the tube into programmable lengths.  Or we can provide a more complete system that can include tube bundle-loading. In this case you can place a complete bundle of tubes into the feeder.  The system will feed one tube length at a time into the feeder rolls and then feed that tube into the cut-off machine to be cut into programmable lengths.  Or, a tube storage table can be provided.  In this case the operator manually loads tube lengths onto the table.  The system will feed one tube length at a time into the feeder rolls and then feed that tube into the cut-off machine to be cut into programmable lengths.  By simply keeping the storage table loaded the machine will run continuously.

Click here for more information on Continental’s automatic tube feeders

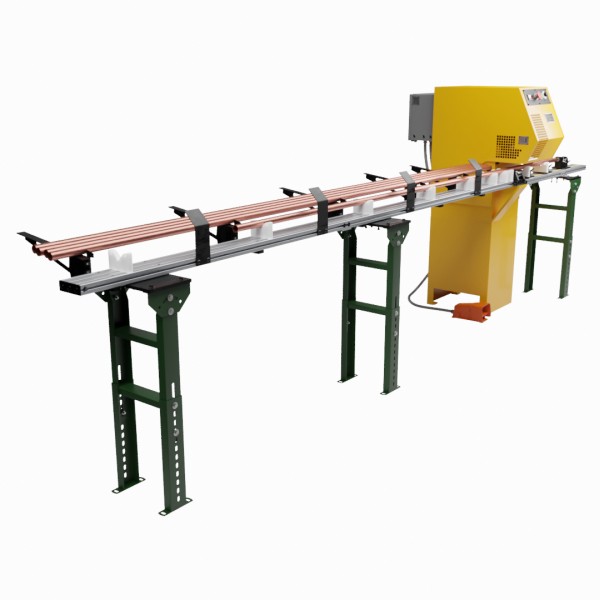

Model 425 Tube Support Table
Our Model 425 Tube Support Table provides an infeed table for stock lengths up to 10 ft. for our Model 2A and 2B pipe and tube cutoff machines.  It includes a storage rack for stock tube lengths and an indexing mechanism to load tube into the support rolls.  It is an economical, compact way to provide an infeed system for your machine.

Model 426 Tube Support Table
The Model 426 TST consists of two Model 425 TST’s connected end-to-end.  This setup provides a support table for tube stock lengths up to 20 ft. for the Model 2A and Model 2B pipe and tube cutoff machines.

Model 500 Series Tube Support Systems
Our Model 500 Tube Support Tables are a modular system to provide infeed tube storage and support for our Model 3A, 3H, 6A and 6H pipe and tube cutoff machines. They are very popular with Continental customers and include a large tube storage rack that can be stocked with tube lengths to be cut. Their modular construction allows you to specify a support system for any pipe or tube cutoff job within the Model 3 and Model 6 machines’ range. Virtually any stock length can be accommodated.

Click here for more information on Continental’s Model 500 Tube Support Tables

Model 466 Cutter Block Assembly
For use on the Model 2A Machine, 1” to 2” diameter stock.

Model 491 Cutter Block Assembly
For use on the Model 2A Machine, 3/8” to 1” diameter stock.

Model 492 Cutter Block Assembly
For use on the Model 2A Machine, 1/4” to 3/8” diameter stock.

Model 400 Cutter Block Assembly
For use on the Model 2B Machine, 1” to 2” diameter stock.

Model 401 Cutter Block Assembly
For use on the Model 2B Machine, 3/8” to 1” diameter stock.

Model 402 Cutter Block Assembly
For use on the Model 2B Machine, 1/4” to 3/8” diameter stock.

Model 419 Cutter Block Assembly
For use on the Model 2B Machine, 1” to 2” diameter stock (full size rolls).

Model 494 Cutter Block Assembly
For use on the Model 2B Machine, 3/8” to 1” diameter stock (full size rolls).

Model 465 Cutter Block Assembly
For use on the Model 3 & Model 6 Series Machines, 3/8” to 1-1/4” diameter stock.

Model 467 Cutter Block Assembly
For use on the Model 3 Series Machines, 3/4” to 4-1/2” diameter stock.

Model 492 Cutter Block Assembly
For use on the Model 3 Series Machines, 1/4” to 3/8” diameter stock.

Model 468 Cutter Block Assembly
For use on the Model 6 Series Machines, 3/4” to 7-1/2” diameter stock.

Model 469 Cutter Block Assembly
For use on the Model 12A Machine, 3-1/2” to 12-3/4” diameter stock.

Model 421 Motor Upgrade
For use on the Model 3 Series Machines, 3 Horsepower.

Model 422 Motor Upgrade
For use on the Model 6 Series Machines, 5 Horsepower for up to 1/2″ wall thickness.

Model 423 Motor Upgrade
For use on the Model 12A Machine, 7-1/2 Horsepower for up to 5/8” wall thickness.

Model 428 Automatic Length Gauge – For use on the Model 2A Machine

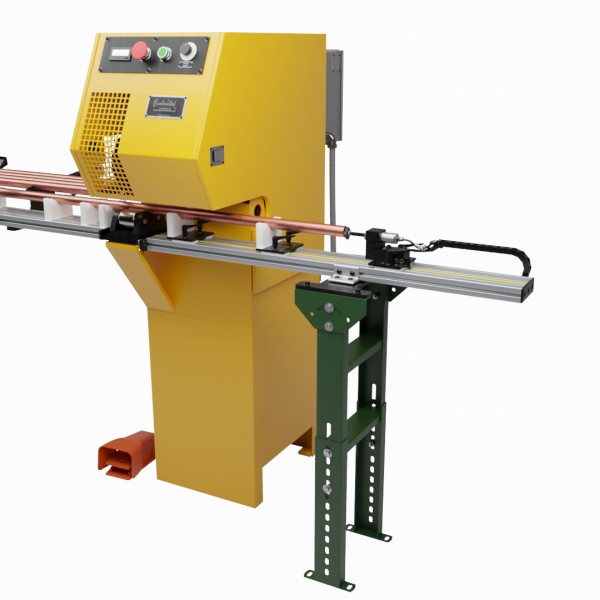

Model 447 Automatic Length Gauge
The Model 447 ALG is for use on our Model 3A pipe and tube cutting machines.  It proves an integrated cutting switch that initiates the machine’s cutting stroke.  The operator simply pushes the tube against the length stop and the cut is made, speeding up the production rate.  It is easy to setup, adjust and use.

Model 448 Automatic Length Gauge
The Model 448 ALG is for use on our Model 6A pipe and tube cutting machines.  It proves an integrated cutting switch that initiates the machine’s cutting stroke.  The operator simply pushes the tube against the length stop and the cut is made, speeding up the production rate.  It is easy to setup, adjust and use.

5710 Grinding Wheel – For use with the Model 1G Grinder

5959 Blade Honing Stone – For use with the Model 1G Grinder
